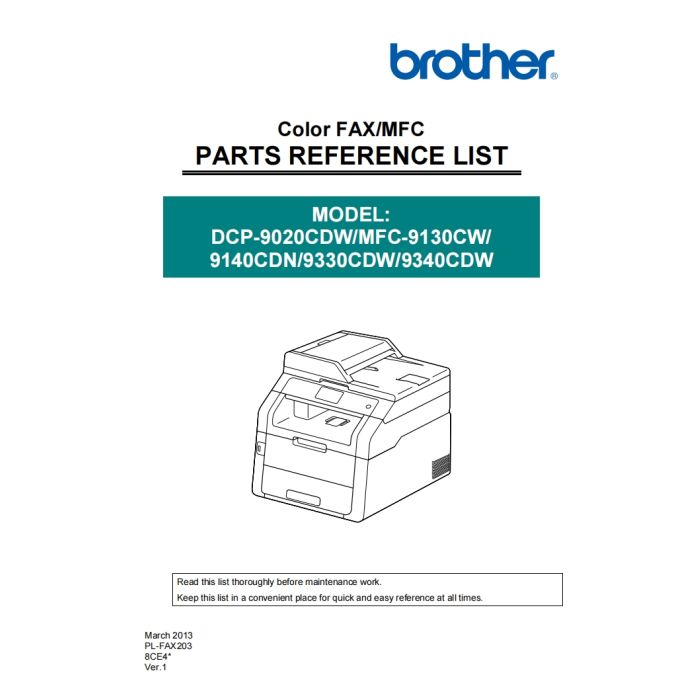

Brother Inkjet-MFC 9130CW 9140DN 9330CDW 9340CDW Inkjet-DCP 9020CDN 9020CDW Parts List Manual
$4.95
In stock
SKU
BR-9130-PM
- Download immediately after payment
- PDF format service manual
- Allow high-definition printing
CONTENTS
1. FRAME L & DRIVE UNIT ..................................................................... 1
2. FRAME R UNIT .................................................................................... 3
3. FRAME ................................................................................................. 5

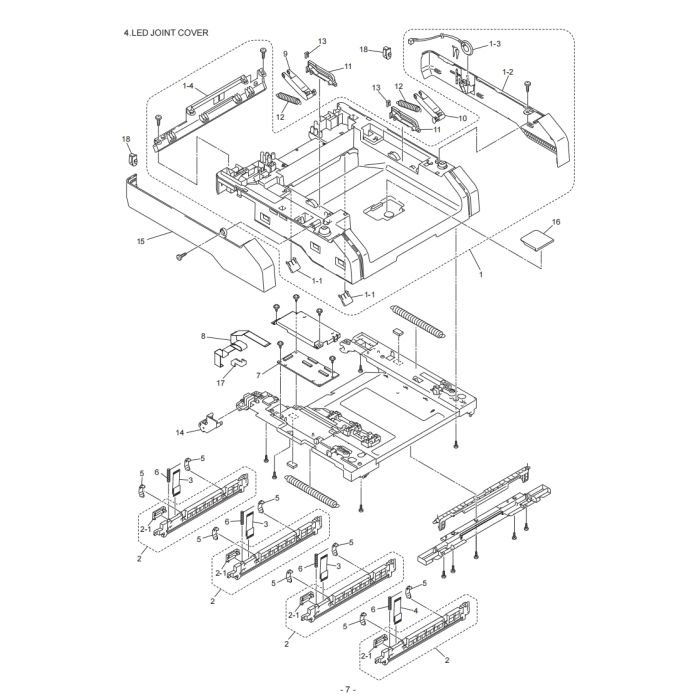

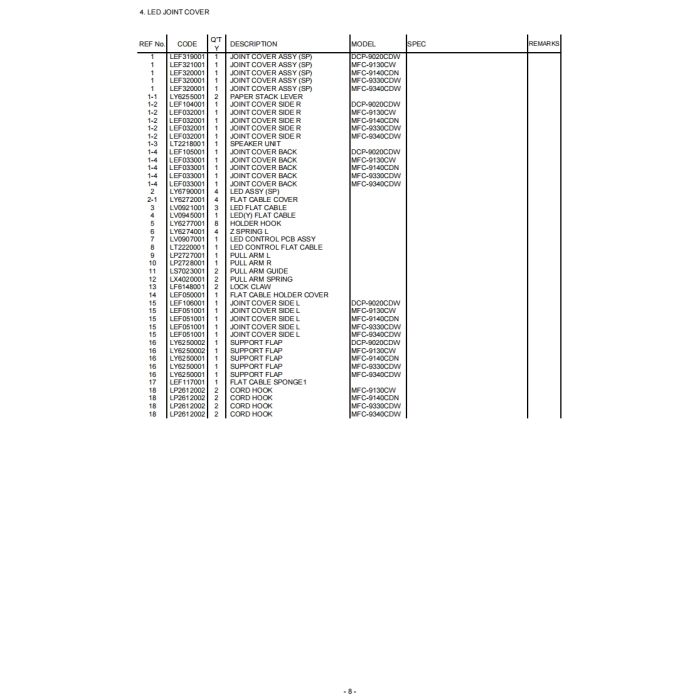

4. LED JOINT COVER.............................................................................. 7
5. PAPER FEEDER .................................................................................. 9
6. DUPLEX ............................................................................................. 11
7. PAPER TRAY ..................................................................................... 13
8. FUSER UNIT ...................................................................................... 15
9. PAPER EJECT ................................................................................... 17
10. COVERS & LABELS .......................................................................... 19
11. DOCUMENT SCANNER ..................................................................... 21
12. ADF..................................................................................................... 23
13. PANEL ................................................................................................ 25
14. PCB .................................................................................................... 27
15. ACCESSORIES .................................................................................. 29
16. PRINTED MATERIALS ...................................................................... 32
17. PACKING MATERIALS...................................................................... 35
18. PERIODICAL MAINTENANCE PARTS ............................................. 37
| BRAND | EPSON |
|---|---|
| TYPES | Parts_Manual |
| SIZE | 934K |
| PAGES | 41 |
| FORMAT | |
| LANGUAGE | English |
| QUALITY | High resolution |
| VERSION | 1 |
| DOCDATE | 2013-01-02 00:00:00 |
| APPLIESTO | Brother Inkjet-MFC 9130CW Brother Inkjet-MFC 9140DN Brother Inkjet-MFC 9330CDW Brother Inkjet-MFC 9340CDW Brother Inkjet-DCP 9020CDN Brother Inkjet-DCP 9020CDW |
