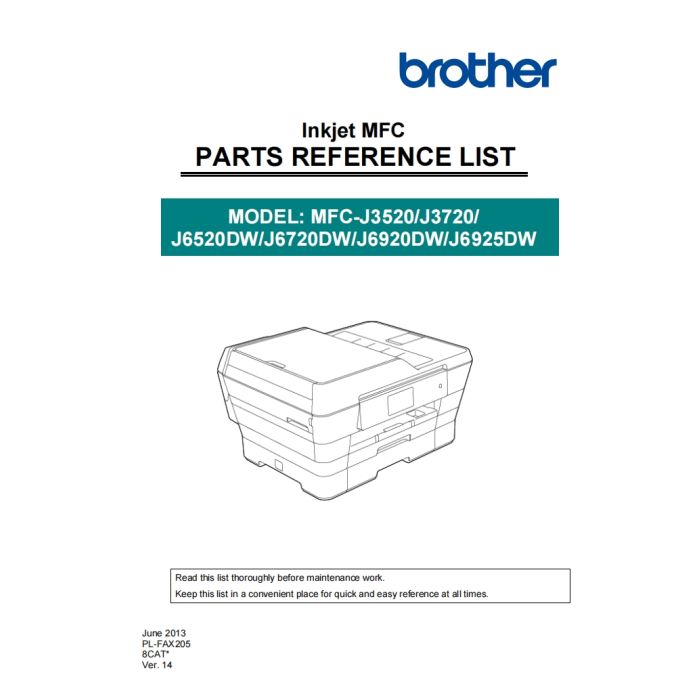

Brother Inkjet-MFC J6520DW J6720DW J6920DW J6925DW Parts List Manual
$4.95
In stock
SKU
BR-J6520-PM
- Download immediately after payment
- PDF format service manual
- Allow high-definition printing
CONTENTS
1.ADF ...................................................................................................... 1
2.DOCUMENT SCANNER ....................................................................... 3
3.CARTRIDGE CASE.............................................................................. 5

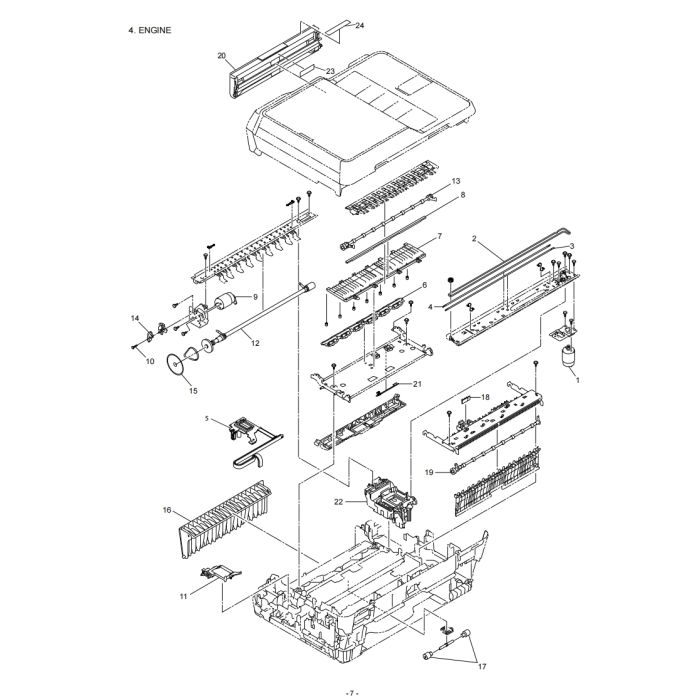

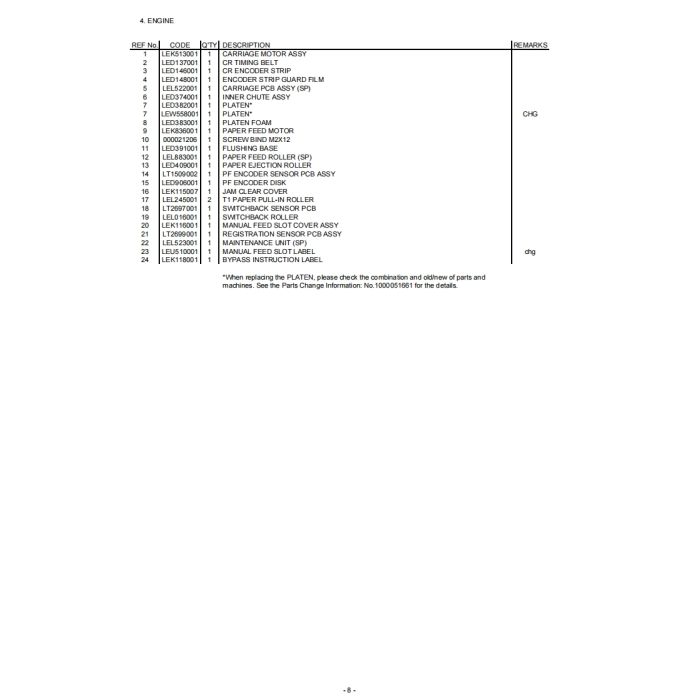

4.ENGINE ................................................................................................ 7
5.HEAD.................................................................................................... 9
6.PAPER TRAY..................................................................................... 11
7.LOWER TRAY.................................................................................... 13
8.COVERS & LABELS......................................................................... 15
9.PANEL................................................................................................ 17
10. PCB .................................................................................................... 19
11. ACCESSORIES .................................................................................. 21
12. PRINTED MATERIALS ....................................................................... 23
13. PACKING MATERIALS...................................................................... 26
14. OTHERS ............................................................................................. 28
| BRAND | EPSON |
|---|---|
| TYPES | Parts_Manual |
| SIZE | 1.66M |
| PAGES | 32 |
| FORMAT | |
| LANGUAGE | English |
| QUALITY | High resolution |
| VERSION | 14 |
| DOCDATE | 2013-01-06 00:00:00 |
| APPLIESTO | Brother Inkjet-MFC J6520DW Brother Inkjet-MFC J6720DW Brother Inkjet-MFC J6920DW Brother Inkjet-MFC J6925DW |
