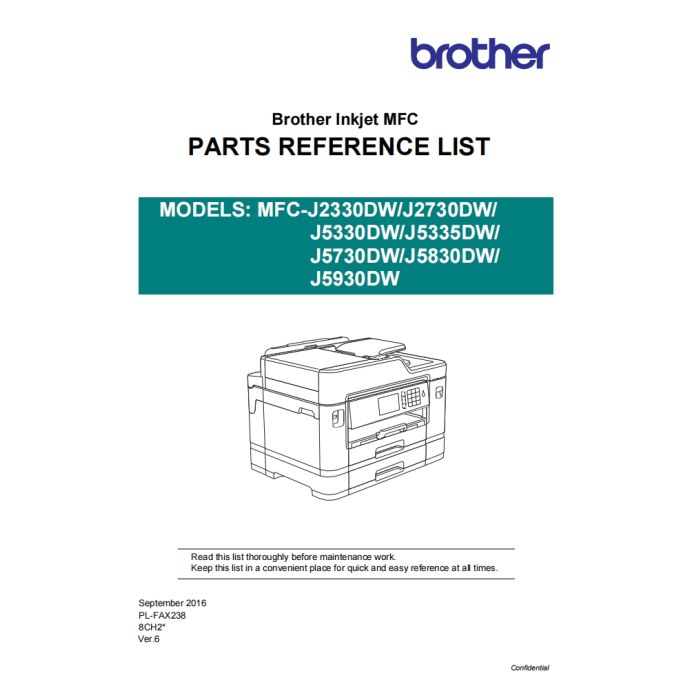

Brother Inkjet-MFC J2330DW J2730DW J5330DW J5335DW J5730DW J5830DW J5930DW Part List Manual
$4.95
In stock
SKU
BR-J2330-PM
- Download immediately after payment
- PDF format service manual
- Allow high-definition printing
CONTENTS

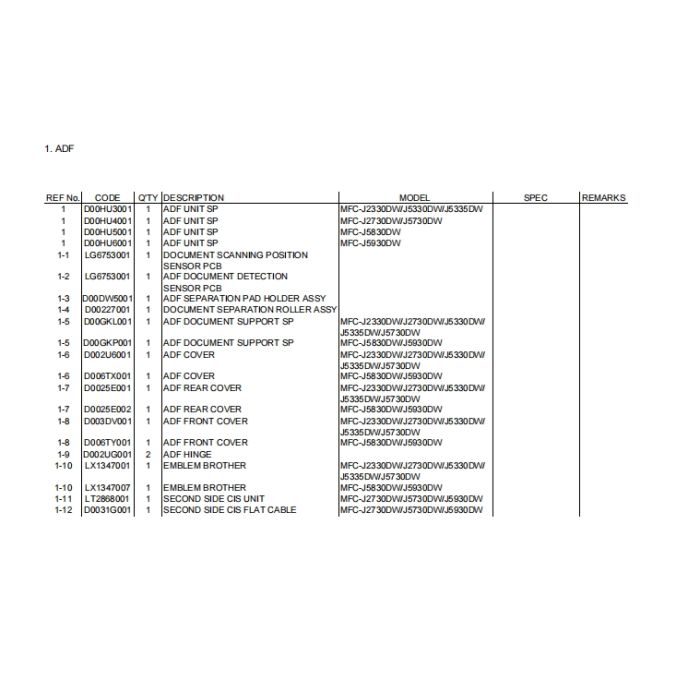

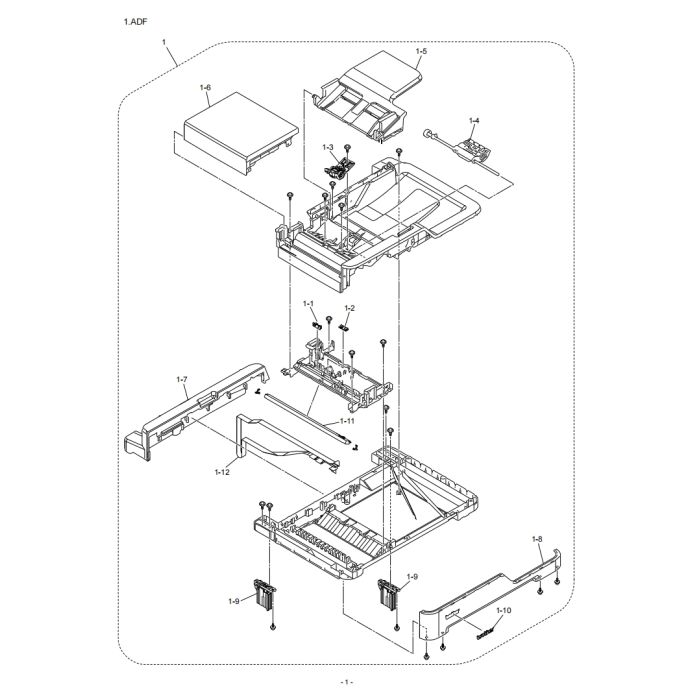

1.ADF ...................................................................................................... 1
2.DOCUMENT SCANNER ....................................................................... 3
3.CARTRIDGE CASE .............................................................................. 5
4.ENGINE ................................................................................................ 7
5.HEAD .................................................................................................... 9
6.PAPER TRAY ..................................................................................... 11
7.MP TRAY ............................................................................................ 13
8.COVERS & LABELS ......................................................................... 15
9.PANEL ................................................................................................ 17
10. PCB .................................................................................................... 19
11. ACCESSORIES .................................................................................. 21
12. PRINTED MATERIALS....................................................................... 24
13. PACKING MATERIALS ..................................................................... 27
14. OTHERS............................................................................................. 29
15. LOWER TRAY.................................................................................... 31
| BRAND | EPSON |
|---|---|
| TYPES | Parts_Manual |
| SIZE | 1.56M |
| PAGES | 35 |
| FORMAT | |
| LANGUAGE | English |
| QUALITY | High resolution |
| VERSION | 1 |
| DOCDATE | 2016-01-09 00:00:00 |
| APPLIESTO | Brother Inkjet-MFC J2330DW Brother Inkjet-MFC J2730DW Brother Inkjet-MFC J5330DW Brother Inkjet-MFC J5335DW Brother Inkjet-MFC J5730DW Brother Inkjet-MFC J5830DW Brother Inkjet-MFC J5930DW |
