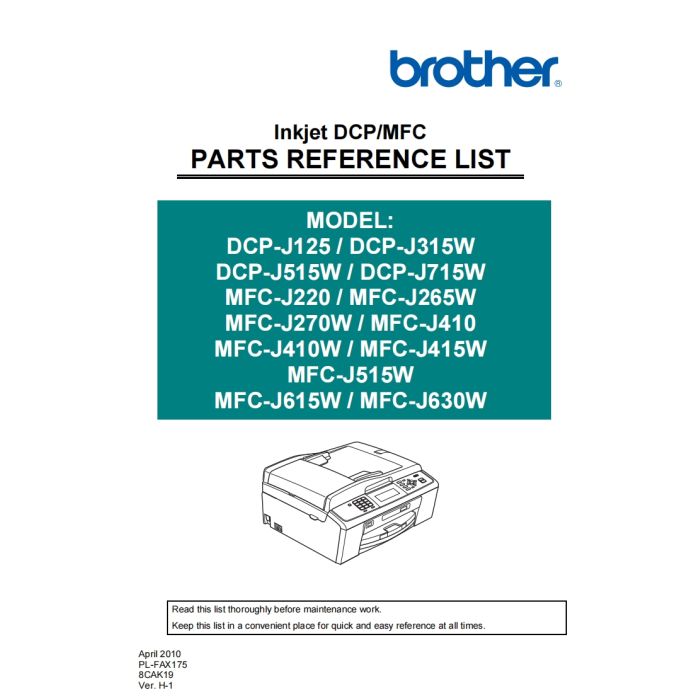

Brother Inkjet-MFC J220 J265W J270W J410 J415W J515W J615W J630W DCP-J125 J315W J515W J715W Parts List Manual
$4.95
In stock
SKU
BR-J220-PM-1
- Download immediately after payment
- PDF format service manual
- Allow high-definition printing
CONTENTS

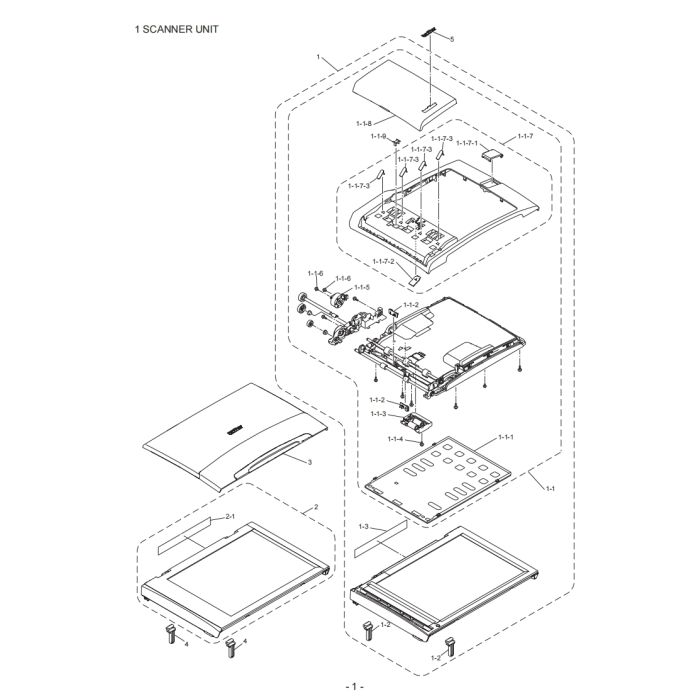

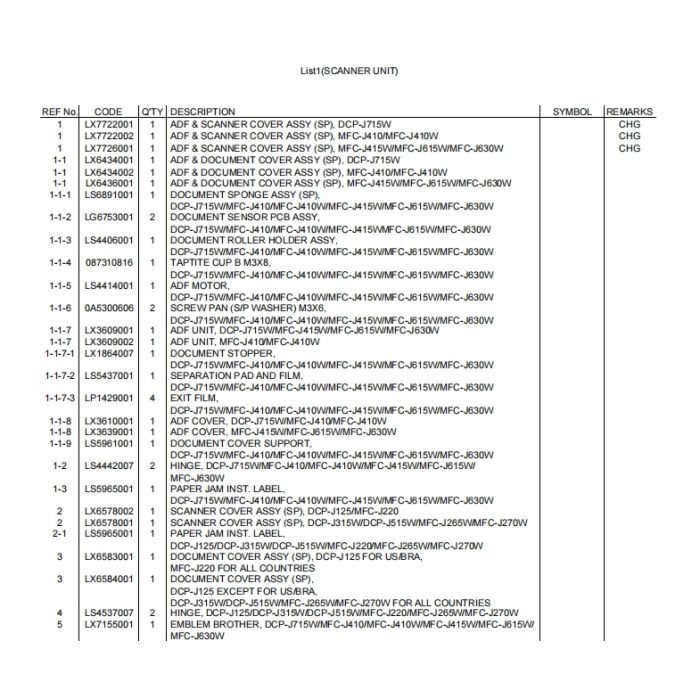

1. SCANNER UNIT.................................................................................. 1
2. CARTRIDGE CASE.............................................................................. 3
3. ENGINE ................................................................................................ 5
4. HEAD.................................................................................................... 7
5. PAPER TRAY....................................................................................... 9
6. COVER ............................................................................................... 11
7. PANEL................................................................................................ 13
8. PCB .................................................................................................... 17
9. ACCESSORIES.................................................................................. 19
10. PRINTED MATERIALS ...................................................................... 22
11. PACKAGING...................................................................................... 25
12. OTHERS............................................................................................. 29
| BRAND | EPSON |
|---|---|
| TYPES | Parts_Manual |
| SIZE | 1.8M |
| PAGES | 33 |
| FORMAT | |
| LANGUAGE | English |
| QUALITY | High resolution |
| VERSION | 1 |
| DOCDATE | 2010-01-04 00:00:00 |
| APPLIESTO | Brother Inkjet-MFC J220 Brother Inkjet-MFC J265W Brother Inkjet-MFC J270W Brother Inkjet-MFC J410 Brother Inkjet-MFC J415W Brother Inkjet-MFC J515W Brother Inkjet-MFC J615W Brother Inkjet-MFC J630W Brother Inkjet-DCP J125 Brother Inkjet-DCP J315W Brother Inkjet-DCP J515W Brother Inkjet-DCP J715W |
