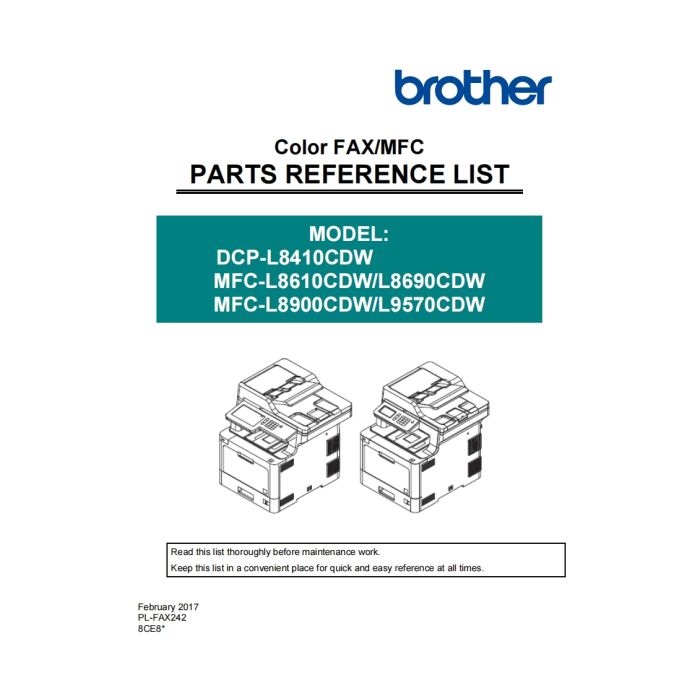

Brother Color-Laser-MFC L8610CDW L8690CDW L8900CDW L9570CDW DCP-L8410CDW Parts List Manual
$4.95
In stock
SKU
BR-L8610-PM
- Download immediately after payment
- PDF format service manual
- Allow high-definition printing
CONTENTS

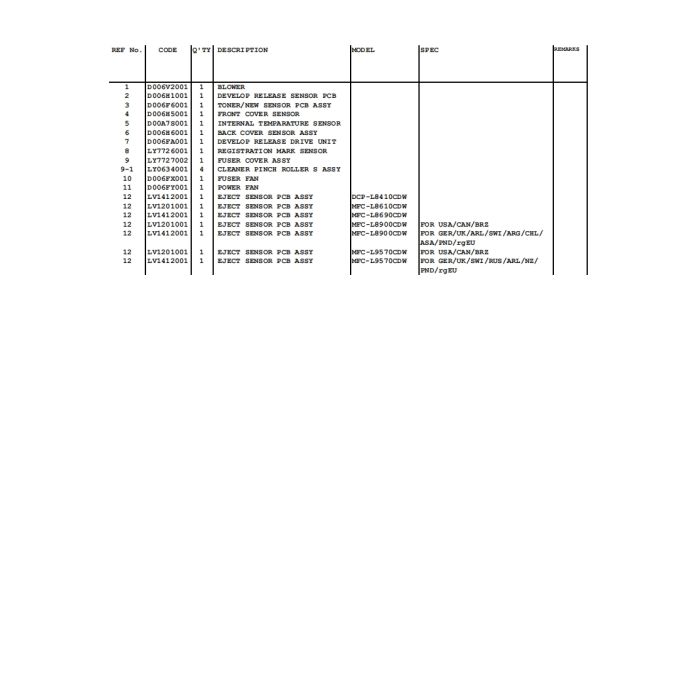

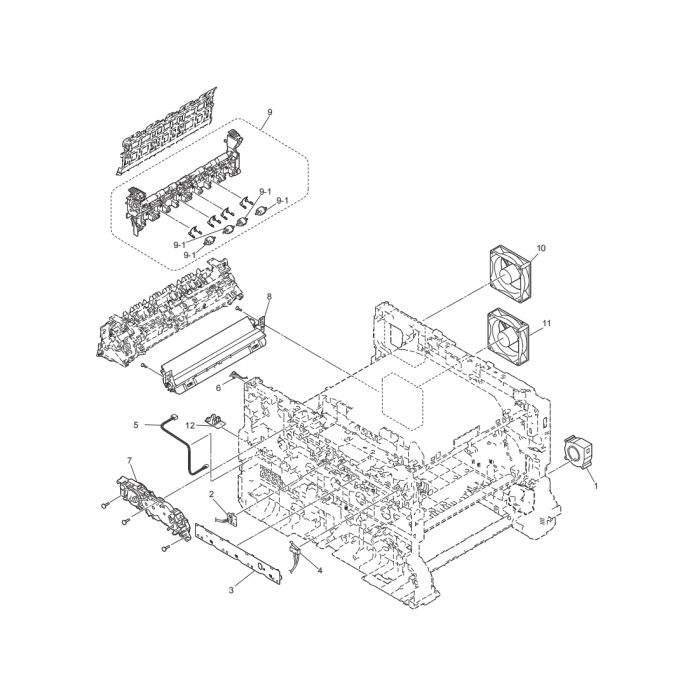

1.FRAME ................................................................................................. 1
2.MAIN DRIVE ......................................................................................... 3
3.LASER UNIT ........................................................................................ 5
4.PAPER FEEDER .................................................................................. 7
5.MP ........................................................................................................ 9
6.PAPER CASSETTE............................................................................ 11
7.FUSER UNIT ...................................................................................... 13
8.PAPER EJECT ................................................................................... 15
9.COVERS & LABELS .......................................................................... 17
10. DOCUMENT SCANNER..................................................................... 20
11. ADF..................................................................................................... 22
12. PANEL................................................................................................ 24
13. PCB .................................................................................................... 26
14. ACCESSORIES.................................................................................. 28
15. PACKING MATERIALS...................................................................... 30
16. PERIODICAL MAINTENANCE PARTS ............................................. 32
| BRAND | EPSON |
|---|---|
| TYPES | Parts_Manual |
| SIZE | 2.1M |
| PAGES | 36 |
| FORMAT | |
| LANGUAGE | English |
| QUALITY | High resolution |
| VERSION | 1 |
| DOCDATE | 2017-01-02 00:00:00 |
| APPLIESTO | Brother Color-Laser-MFC L8610CDW Brother Color-Laser-MFC L8690CDW Brother Color-Laser-MFC L8900CDW Brother Color-Laser-MFC L9570CDW Brother Color-Laser-DCP L8410CDW |
